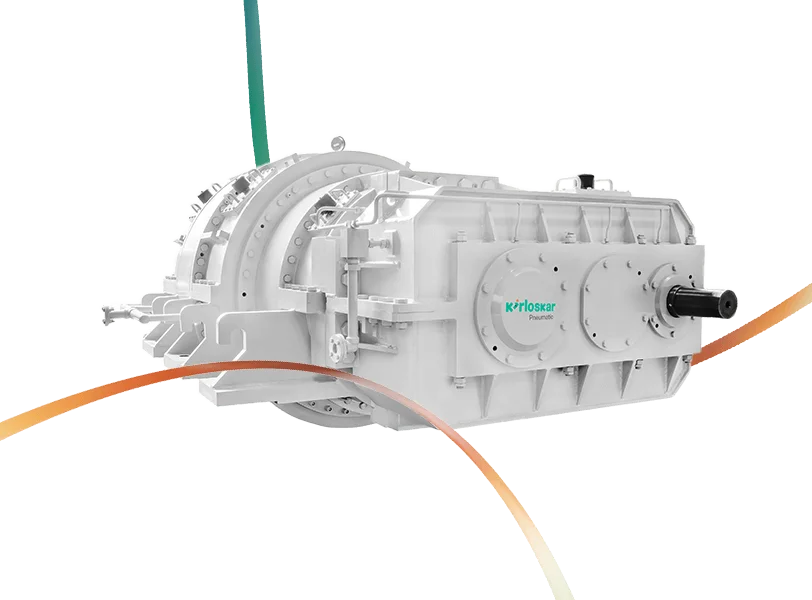

Planetary Gearboxes

Power:

150 KW to 1000 KW

Input Speed:

1000 RPM

Output Speed:

4 to 6.5 RPM

Type:

Industry: Sugar | Power Generation | Steel and Aluminium
Applications: Steel Furnace Tilter | Turbine | Mill Drive

WHY KIRLOSKAR PNEUMATIC?

At Kirloskar Pneumatic, we bring decades of expertise and cutting-edge technology to every gearbox we design. Our experienced Transmissions Division utilises advanced gear analysis software, along with gearbox system dynamics and vibration analysis, to optimise performance and reliability. With an in-house heat treatment facility equipped with SCADA control and microstructure measurement tools, we ensure precise material properties for maximum durability. We also use 5-axis CNC machining centres for casing production, achieving the highest levels of accuracy in every component.

Our state-of-the-art manufacturing facility features CNC gear profile grinders, ensuring the production of high-quality gears that meet the most stringent standards. To validate our designs, we have a fully equipped test facility capable of handling systems up to 1 MW, allowing us to verify all critical parameters and ensure that every gearbox meets performance and reliability expectations.

FEATURES

  • We manufacture precision ground gears
  • Equal distribution of load from 3/5 planets
  • All moving parts deliver rolling action
  • Floating sun pinion
  • Balanced tooth loads on the planets and sun pinion

BENEFITS

  • The equal distribution of load results in lower power per train, more compact gearboxes, smaller modules and lower pitch line velocities
  • The rolling action ensures minimum friction
  • The floating sun pinion eliminates the bearing loss
  • The balanced tooth loads ensures no reaction load on the planet carrier bearings which further reduces bearing loss
