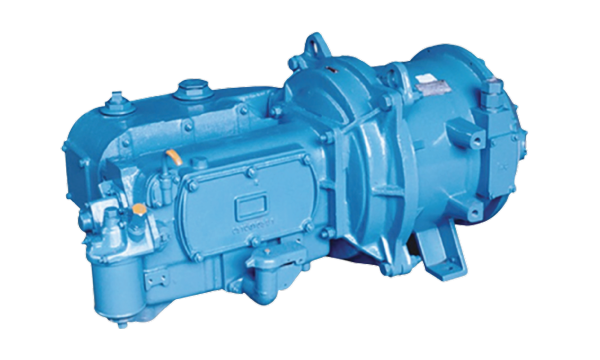

Railway Brake Compressor
Kirloskar Railway Brake Compressors are results of over a half a century of learning and experience which has helped translate into a modern products that meet current and future needs in terms of compressor technology. Differentiating features like Ready-to-use Compact System, Higher Capacity Provides environment protection, Elevated Reliability and Customer Comfort, Prolonged Service Life and ease of servicing.
These compressors are specially designed for application in Diesel Electric Locomotives manufactured by DLW, Electrical Locos manufactured by CLW and for EMU and MEMU application manufactured by ICF, BEML, BHEL etc.
KRM 1200 compressors are specially designed for Braking application in Electrical Multiple Units (EMU & MEMU). These are environment friendly, low noise, rugged construction compressors which come with Radiator type Intercooler and after cooler. These high capacity splash lubricated compressors are designed for under slung duty as well as between the coaches and can be used in AC & DC EMU’s. KRM 1200 come with some highlighted features.
Low noise level: 66 dbA @ 4.5 meters distance in free field conditions
Delivery: 1200 LPM at 1000 RPM
Oil change over: 12 months
Oil top up: once in 180 days
Overhauling schedule: 10000 Hrs of working
3HC55 compressors are specially designed for Braking Application in Electrical Multiple Units (EMU & MEMU). These are three cylinder, two stage, forced air cooled, forced lubricated compressor and come without Inter cooler and After cooler. These compressors deliver 1000 LPM at 980 RPM.
These equipment are specially designed for Braking Application in Diesel Electric Locomotives manufactured by DLW, DMW. Suitable for continuous duty under high temperatures, air cooled, forced lubricated with a gear pump, light weight, compact and highly reliable.
