CNG & CBG Packages

DISTRIBUTION (CNG & CBG)
1
2
3
4

GenericForms

Pneumatic-Our Offering Process Gas CNG-DISTRIBUTION Body Content

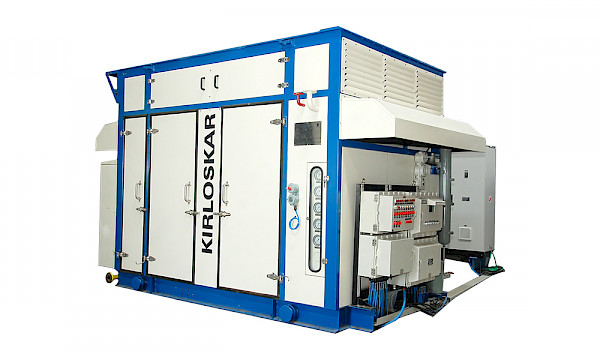

1. Online Compressor Packages

  • KCNG-OC Series – Suitable for Online CNG station. Capacity ranging from 400 SCMH to 3500 SCMH and suction pressure ranging from 0.55 barG to 70 barG.
  • KCNG-VS Series – Suitable for variable suction pressure
  • KCNG-IG Series – Compact design where cascades and dispensing units are integrated in the compressor unit. Suitable for the stations where space is the challenge.
  • KCNG-HB Series – Suitable for daughter booster station for offloading gas from mobile cascades

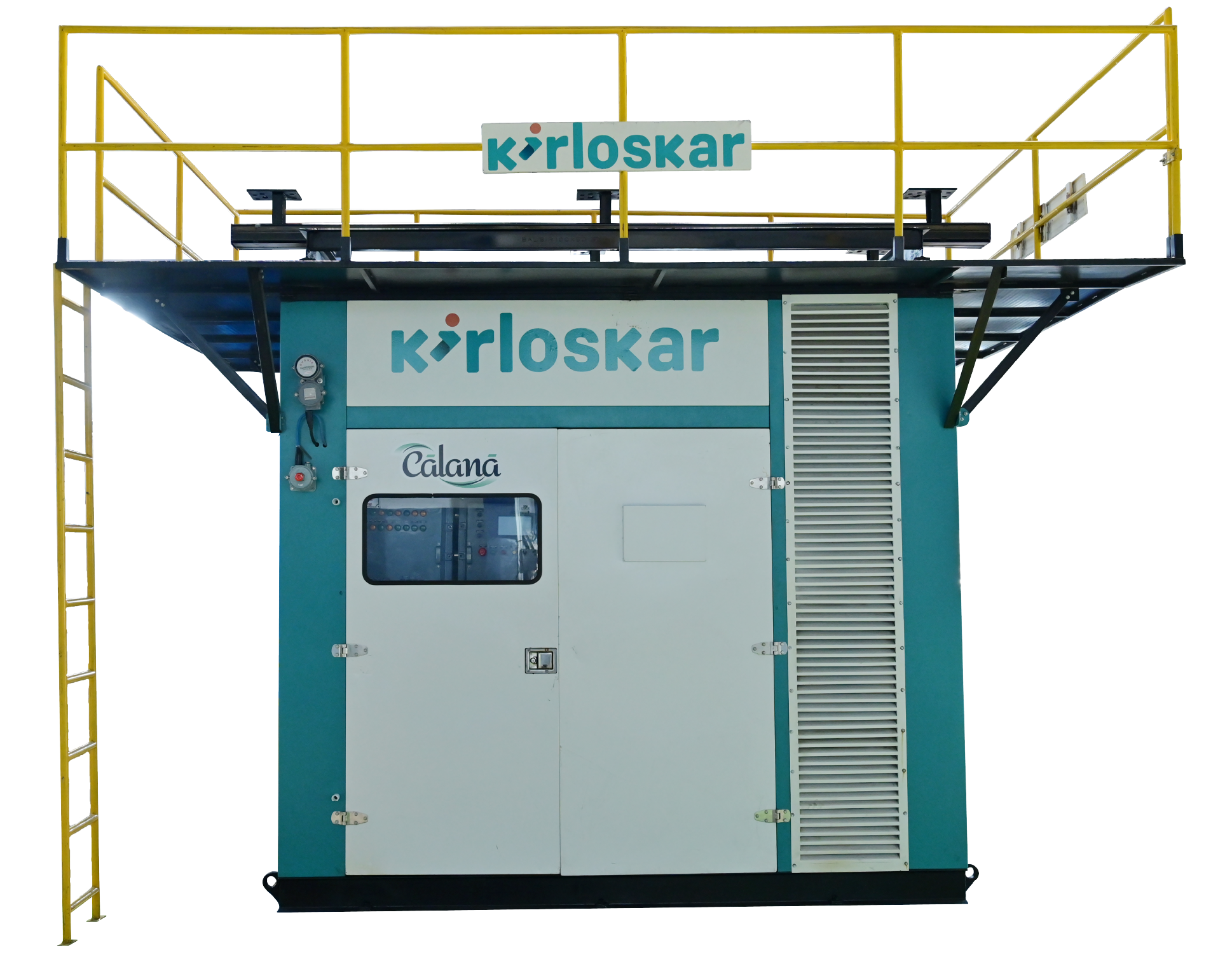

2. CNG Hydraulic Booster Package
Cālanā is suited for the offloading of gases from the mobile trailer cascades/ stationary storage cascades at daughter stations (booster).  Designed for safety, reliability, and applicability, seeking the lowest possible operating cost and lowest initial investment cost, and all performance meets the requirements of the customer specification and material standards. The package is tested on NATURAL GAS at our factory at Pune.

Rating Suction Pressure Discharge Pressure Avg. Flow Rate
22 Kw 200 -30 Bar G 250 Bar G 250 - 400 SCMH
37 Kw 200 -30 Bar G 250 Bar G 400 - 600 SCMH
45 Kw 200 -30 Bar G 250 Bar G 600 - 900 SCMH








Salient Features
  • Standardised footprint for 22 kW & 37 kW
  • Air-cooled Heat Exchanger
  • IoT enabled for remote monitoring.
  • Power efficient
  • 6 / 7 bank filling priorities
Low Pressure Models for Raw Biogas (KCBG-LP Series)

Our Jarilo Low Pressure Compressors are engineered to handle the initial stages of biogas processing with ease and precision. Capable of compressing raw biogas, these models are ideal for feeding gas into water scrubbers and membrane purification systems.  Key features include:
  • Integration with Purification Technologies: Seamlessly works with water scrubbers and membrane technologies for effective biogas purification.
  • Optimized for Raw Biogas: All wetted parts are of SS to handle CO2 present in the raw biogas, ensuring efficient compression and reliable performance and can achieve 0 to 100% capacity control.
  • Robust Construction: Self-lubricating piston and rider rings & ribbed crankcase for heavy duty operation & longer duty cycle
Compressor Type
 Reciprocating Compressor / Screw
Capacity 250 nm3/hr to 2100 nm3/hr
Suction Pressure 80 mbar G to 1 bar G
Discharge Pressure 8 bar G to 16 bar G


High Pressure Models for Pure Biogas (KCBG-HP & KCBG-LPI Series)

For applications requiring higher pressures, our Jarilo High Pressure Compressors are the perfect solution. These models can achieve pressures up to 250 bar, making them suitable for a range of advanced biogas applications, including cascade filling. Key features include:
  • High-Pressure Capability: Achieves pressures up to 250 bar, suitable for cascade filling and NGV filling.
  • Precision Engineering: Designed for 0 to 40% capacity control to ensure consistent and reliable performance for gas variable flows.
  • Safety and Reliability: Incorporates industry standards and robust construction to handle high-pressure operations safely and efficiently.
Compressor Type
 Reciprocating Compressor (2, 4 throw)
Capacity 250 nm3/hr to 1200 nm3/hr
Suction Pressure 0.3 bar G to 15 bar G
Discharge Pressure 55* / 250 bar G
